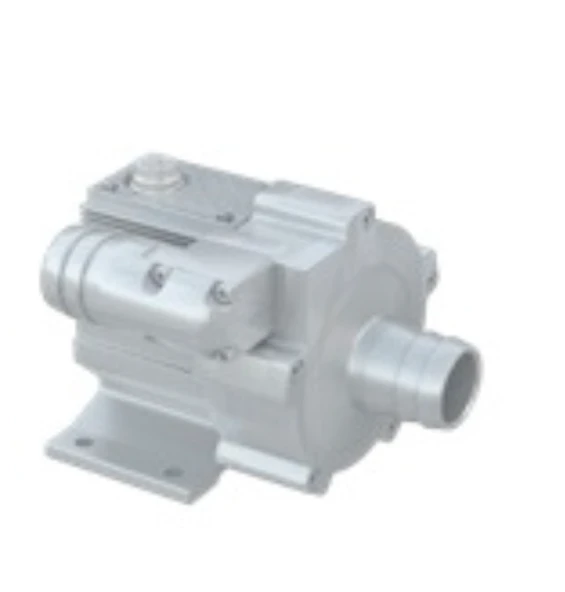

C105H2

C105H2

Industrial, ultra-high power 2-stage, integrated driver

Pressure (Pa)   18,500

Flow (lpm)        727

Categories:Blowers, Centrifugal Blower
  • Description
  • Dimensions: 117.5 x 102 x 132 mm
  • At nominal voltage (24 V), the maximum pressure at zero flow is around 18,500 Pa, and the maximum flow at free flow is around 727 lpm.
  • Blowers can be run at higher voltages for short periods to reach a higher performance, such as 24,000 Pa at zero flow, or 980 lpm at free flow.
  • This blower has an Aluminium housing.
  • Modular blower with 4 positions of outlet available, and 3 positions of driver.
  • This blower has an integrated driver.
